2011–2014 John Deere 9R & 9RT DPF & EGR Delete Tune

The first 9R tractors met Interim Tier 4 without DEF, which put the whole emissions load on cooled EGR and the particulate filter. On a 9510R pulling a wide disc or air drill, those two systems are behind most derates and shop visits. Tune it on the farm with our Reflash Master handheld, or mail us the ECM for a bench flash. Both routes turn EGR and DPF off and can add Stage 1 or Stage 2 power. We ship all across the US and Canada.

FitsJD 9R · 9RT, 2011–2014
SystemsEGR · DPF
TierInterim Tier 4
MethodHandheld or bench flash
Turnaround2 hrs · bench next business day
PowerUp to +20%

Stage 1 vs Stage 2 · John Deere 9510R

Stock510HP

Factory baseline
Stage 1561HP

+51 hp · +10%
Stage 2612HP

+102 hp · +20%

Based on the 9510R’s 510 hp rating. Stage 1 is tuned for fuel savings with extra torque, and Stage 2 for maximum pulling power. Other 9R and 9RT models gain the same percentage over their own rating.

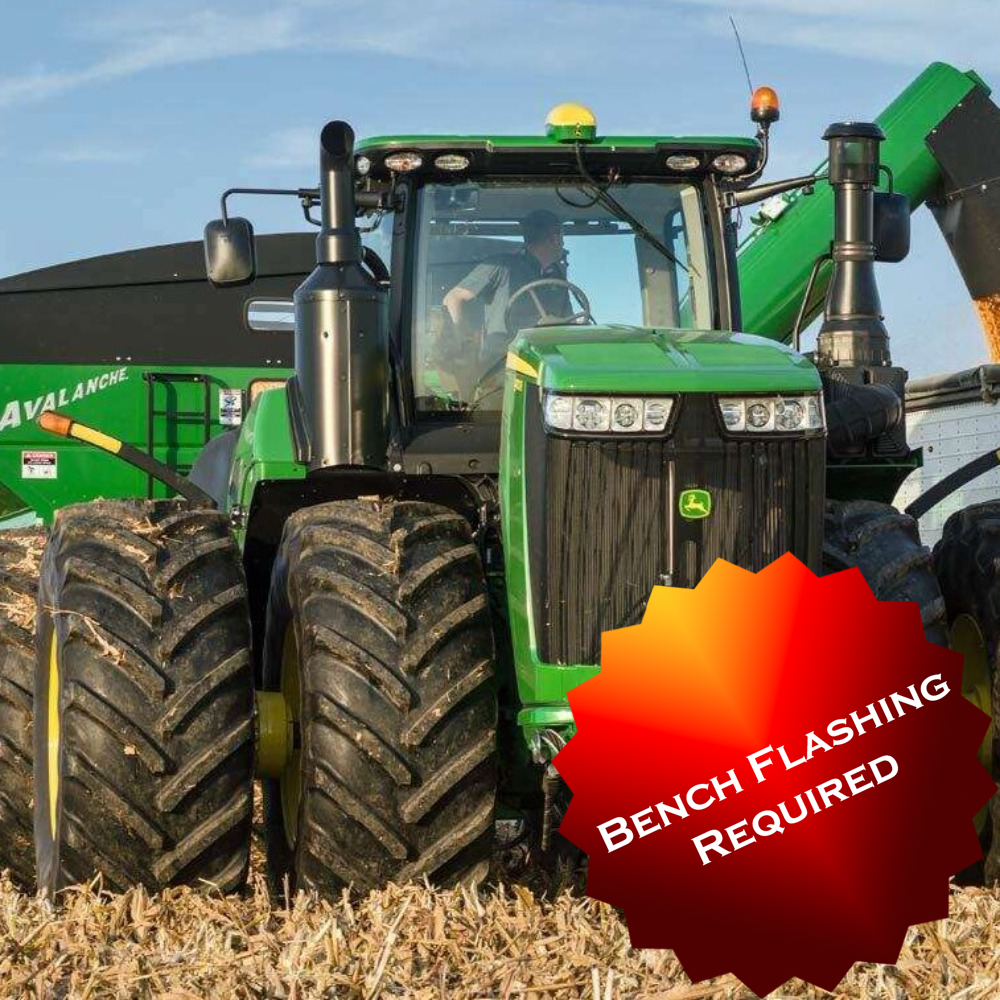

TRACTOR IN DERATE?Soot level too high to reset? Send us the ECMA 9R stuck in a soot derate often can’t be reset in the field. Pick the Bench Flashing option and we write the tune, zero the soot load on our bench and return the ECM the next business day.
Ask which option fits

What’s included

01ECM file with EGR and DPF switched off
02Optional Stage 1 or Stage 2 power
03EGR block-off plate
04Reflash Master handheld with USB and diagnostic cables (handheld option)
051 year software warranty

Handheld process

STEP 01OrderHandheld kits usually leave our shop the next business day.
STEP 02ReadConnect at the diagnostic port and pull a copy of the stock ECM file.
STEP 03SendEmail us the read. The tuned file is back in about 2 hours.
STEP 04WriteLoad the tune, bolt on the EGR plate and deal with the DPF.

Bench flash process

STEP 01OrderYou get our address and customs forms by email.
STEP 02ShipUnplug the engine ECM and mail it in.
STEP 03FlashTune written, soot reset and shipped the next business day.
STEP 04InstallPlug the ECM in, add the EGR plate and gut or pipe the DPF.
OVER-THE-AIR UPDATESRead our position on John Deere OTA rewritesRead →

After the tune

EXHAUSTHollow out or straight pipe the DPFWith regens disabled the filter will plug over time, so gut the canister or swap in a straight pipe. There is no SCR on these early 9R tractors, so the rest of the exhaust stays as built.
EGRBlock-off plate includedOur file keeps the EGR valve closed. The plate in the kit seals the passage too, so a valve that seizes open can’t feed exhaust into the intake.

9R tractors we tune

Interim Tier 4 wheeled 9R and two-track 9RT tractors, 2011 to 2014.

9RWheeled · Interim Tier 4
9360R9410R9460R9510R9560R
9RTTwo-track · Interim Tier 4
9460RT9510RT9560RT

Not sure which version you have? Email us the serial number and we will confirm it before you order. 9R tractors built for Final Tier 4 use DEF and have their own tune.

2014 – PRESENT 9R, 9RT OR 9RX?Final Tier 4 9 Series tractors with DEF use a separate tuneView →

Why delete the DPF and EGR on a 2011–2014 John Deere 9R?

DPF

Diesel particulate filter

A 9R spends plenty of hours off full load: transporting between fields, idling at the end of a pass or running a grain cart. Those hours are when the DPF loads up fastest, and an active regen burns fuel and holds back power while it runs. After ten-plus years, many of these large filters are also full of ash. Gutting or piping the canister puts an end to regens and opens up exhaust flow on the big engine.

EGR

Exhaust gas recirculation

With no DEF to help, the Interim Tier 4 9R controls NOx almost entirely by sending cooled exhaust back into the intake. That heavy EGR rate leaves soot in the intake manifold, stresses the cooler with heat cycles and wears out valves. A cooler that cracks can leak coolant into the engine. Turning EGR off in the file and plating the port removes that whole circuit.

Frequently asked questions

Q1Handheld or bench flash: which should I choose?+

The handheld suits most owners, since you tune the 9R in your own shop. Pick bench flashing if a high-soot derate can’t be reset on site. If the handheld can’t complete the write because the CAN bus is overloaded, the ECM will need to come to us for a bench flash.

Q2How quickly can the tractor be back to work?+

With the handheld, about 2 hours after we receive your stock read. A mailed-in ECM goes back out the next business day, so total downtime is mostly shipping time.

Q3Does the DPF have to come off?+

The filter needs to be gutted or replaced with a straight pipe after the tune. Since Interim Tier 4 9R tractors have no SCR or DEF, that is the only exhaust change.

Q4Which horsepower stage is right for me?+

Stage 1 adds roughly 10% with a focus on fuel savings and torque. Stage 2 adds roughly 20% for tractors pulling at their limit, and still helps fuel use under heavy load.

Q5Will a dealer update remove the tune?+

It can. Dealer reprogramming or a software update may write over our file, so read our OTA statement before the tractor goes on dealer service tools.

Q6How fast does the handheld ship?+

Most handheld kits ship the next business day to anywhere in the US or Canada. Expedited orders placed after 12 PM ET ship the following day.

Q7Disclaimer+

Sold for off-road farm use only and not for tractors registered for road use. Review your state or provincial rules before ordering.

Why Reimer Tuning

We are a Canadian company and have built tuning software for farm machinery since 2014. Every 9R file is written in house, carries a 1 year software warranty, and comes with phone support from the team that wrote it.

Off-road use only. Not for machines registered for highway use. Buyers are responsible for knowing their provincial or state legislation. All sales final.
