Kubota Interim Tier 4 Tractor EGR & DPF Reflash

One reflash for a whole generation of Kubota tractors. Our Reflash Master handheld reads the ECM on your 3.3L, 3.8L or 6.1L engine, and the file we send back shuts down the EGR and DPF so the tractor stops pausing to regen. Add a Stage 1 or Stage 2 power tune in the same file, or order the tune by itself. We ship all across the US and Canada.

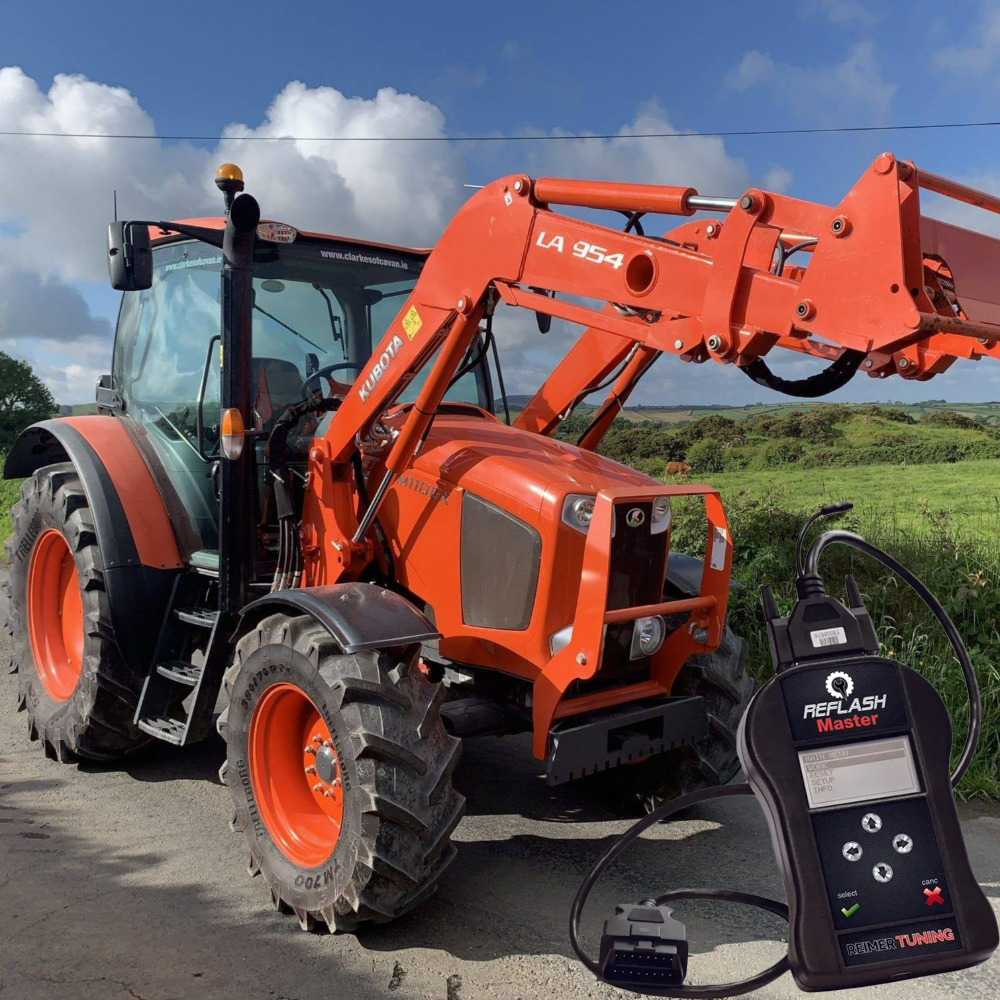

FitsKubota M50–M135, M60 series
SystemsEGR and DPF
TierInterim Tier 4

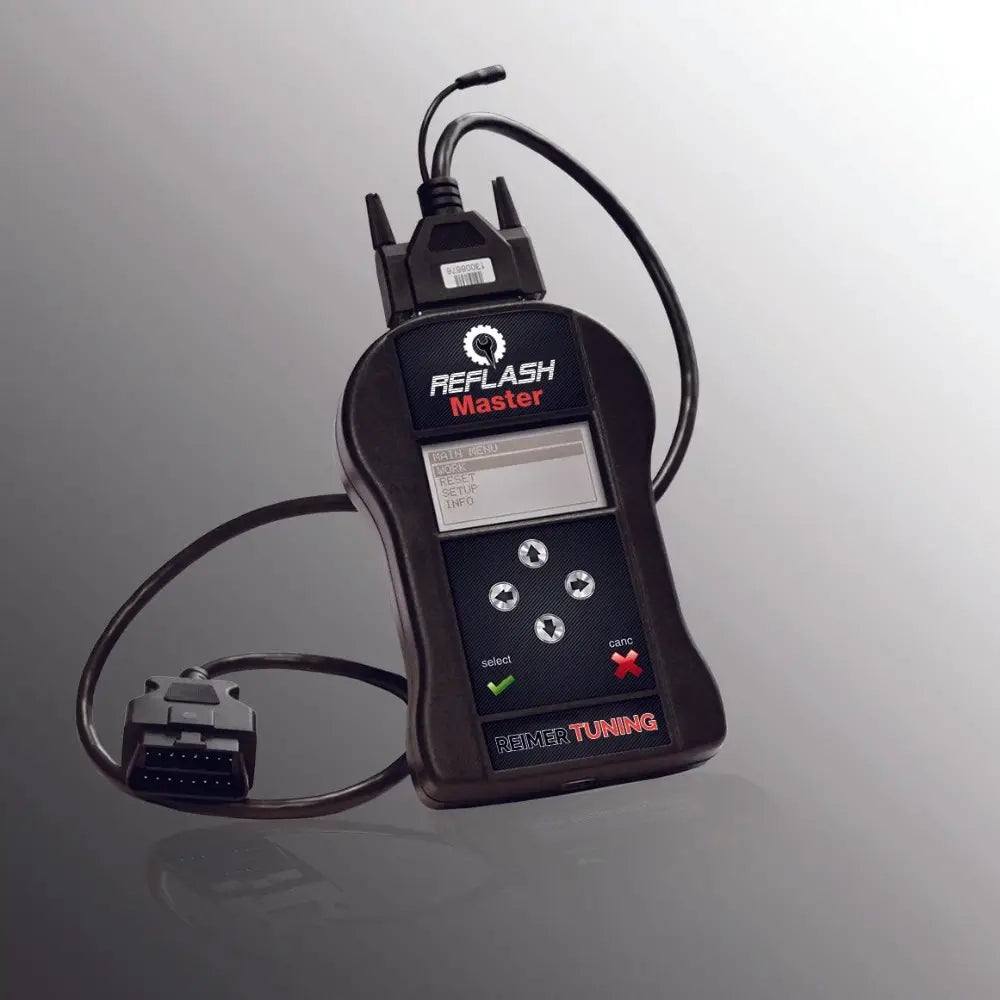

MethodReflash Master handheld
TurnaroundTuned file in 2 hours
PowerUp to +20% horsepower

Horsepower tunes · Interim Tier 4

Stock100%

Factory baseline
Stage 1+10%

Over factory power
Stage 2+20%

Over factory power
COVERED MODELS
Kubota M50–M135 Kubota M6060 Kubota M7060 Kubota M8560 Kubota M9960

Gains are a percentage of each tractor's factory rating, so they hold across every model on this page. Covers Interim Tier 4 Kubota tractors with 2.6L engines and up.



Kit includes

01Reflash Master handheld with tuning software
02Quick Reference Guide
03ECM emissions programming
04EGR blocker plate and OEM gasket, on engines that need one
05Emailed step-by-step guide for DPF filter removal and EGR plate install

Handheld tuning process

STEP 01ShipPick your engine size and options, and the handheld kit heads your way.
STEP 02ReadPlug into the diagnostic port and pull a copy of the ECM file.
STEP 03UploadSend us the read. Your modified file comes back in about 2 hours.
STEP 04FlashLoad the new file onto the ECM, and the tractor is ready for work.
VIDEO TUTORIALSee the Reflash Master in actionWatch →

Why delete the DPF and EGR on an Interim Tier 4 Kubota?

DPF

Diesel particulate filter

Chore tractors spend much of the day at low idle, running a loader, a mixer or a bale spear. Light loads like that never get the filter hot enough to clear itself, so soot builds until the ECM forces a regen and the job waits. Over time the filter needs a pricey cleaning or replacement. Pull the filter and reflash, and the back-pressure and the downtime both go away.

EGR

Exhaust gas recirculation

The EGR valve feeds hot, sooty exhaust back into the intake to lower NOx. Carbon slowly builds on the valve and the cooler until the valve sticks or the passage clogs. Then you get warning lights, sluggish response, higher fuel use and sometimes limp mode. The reflash keeps the valve shut, and where the engine needs it, a block-off plate seals the port.

Why tune with a handheld?

Nothing gets pulled from the tractor and nothing gets mailed. The whole tune happens in your shop.

01No haulingNo trailer trip to a dealer, and no ECM sitting in the mail.
02Help on screenWith TeamViewer, our tuners can log into your PC and walk you through any step.
03Keep the toolThe Reflash Master stays with you, ready for future updates or a return to stock.

Frequently asked questions

Q1Which engine size do I choose at checkout?+

Look at the engine data plate or the emissions label on the block. It will read V3300 (3.3L), V3800 (3.8L) or V6100 (6.1L). If the plate is hard to read, send us a photo with your tractor model and serial number and we will match it for you.

Q2Can I order the horsepower tune without the emissions reflash?+

Yes. There are three options: the horsepower tune on its own, the DPF/EGR reflash on its own, or both in one file. You can pick Stage 1 or Stage 2 with either power option.

Q3Does every engine get an EGR block-off plate?+

No. Most of these EGR valves rest closed once the software stops powering them. On the engines where a plate is needed, we ship a blocker plate with an OEM gasket as a backup seal. We let you know which applies when you order.

Q4What happens to the DPF canister?+

We do not make a pipe for these tractors. You pull the filter brick out of the stock canister and reinstall the empty shell, following the step-by-step guide we email you. The exhaust keeps its factory mounting and look.

Q5How fast does the kit ship?+

We ship anywhere in North America within 1 business day. Expedited orders placed after 12 p.m. ET go out the following business day.

Q6Disclaimer+

Emissions tuning is sold for off-road machines only. It cannot be performed on any vehicle registered for highway use, and it is your responsibility to check local provincial or state rules first.

Why Reimer Tuning

We write our own Kubota tractor files in-house and stand behind each one with a 1 year software warranty. Since 2014, farmers across North America have called us to tune their equipment, and they reach a tuner, not a call centre.

Off-road use only. Not for machines registered for highway use. Buyers are responsible for knowing their provincial or state legislation. All sales final.
