2007-2011 John Deere FWD Tractor Reflash

From $1,850.00
Reflash Options
Diagnostic Cable
Tooling
$1,850.00
$1,850.00
Shipping calculated at checkout.

Want next day delivery? Be quick!

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"


2007–2011 John Deere FWD Tractor EGR Delete Tune

From the 7230 Premium to a 6430 on the loader, Tier 3 John Deere FWD tractors carry no DPF or DEF, but their cooled EGR is still a common source of carbon, overheating and costly repairs. Our Reflash Master handheld reads the ECM right at the tractor, and we send back a file with the EGR shut off and Stage 1 or Stage 2 horsepower added. We ship all across the US and Canada.

Fits6030 · 7030 · 5E · 5M · 6D
SystemsEGR
TierTier 3 · 2007–2011
MethodReflash Master handheld
TurnaroundTuned file in 2 hours
PowerUp to +20%

Stage 1 vs Stage 2 · John Deere 7230 Premium

Stock230HP

Factory baseline
Stage 1253HP

+23 hp · +10%
Stage 2276HP

+46 hp · +20%

Figures for a 230 hp 7230 Premium. Stage 1 is tuned for fuel economy with a small torque bump; Stage 2 goes after horsepower and all-round performance. Other models see the same percentage on their own rating.


BEFORE WE SHIP YOUR KITSend us a photo of your engine serial numberEGR ports differ between PowerTech engines. The photo lets us pack the right EGR block-off plate for your tractor.
Email engine serial photo

What’s included

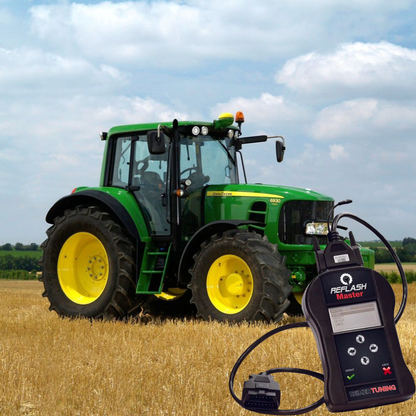

01Reflash Master handheld device
02Standard or Premium diagnostic cable, plus USB cable
03EGR delete and Stage 1 or Stage 2 horsepower file
04EGR block-off plate matched to your engine
05Client software, Quick Reference Guide and 1 year software warranty

Handheld process

STEP 01OrderPick Standard or Premium cable. Kits usually ship next business day.
STEP 02ReadConnect the handheld at the tractor and save the stock ECM read.
STEP 03SendUpload the read to us. Your tuned file is back in about 2 hours.
STEP 04WriteLoad the new file, then bolt on the EGR block-off plate.
Cable · StandardStandard models6030 and 7030 Standard tractors, plus all 5E, 5M and 6D models.
Cable · PremiumPremium modelsPremium tractors place CAN high and low on different pins, so they need the Premium cable. Choose it at checkout.

After the tune

EXHAUSTNo exhaust changesTier 3 tractors were built without a DPF or DEF system, so the exhaust stays exactly as it is.
EGRBlock-off plate includedThe file keeps the EGR valve closed, and the plate in your kit seals the passage so exhaust cannot reach the intake even if the valve sticks.

John Deere tractors we tune

Tier 3 John Deere FWD and utility tractors, 2007 to 2011.

6030 SeriesStandard cable
6230633064306530663068306930
6030 PremiumPremium cable
6230 Premium6330 Premium6430 Premium6530 Premium6630 Premium6830 Premium6930 Premium
7030 SeriesStandard cable
7130723073307630773078307930
7030 PremiumPremium cable
7430 Premium7530 Premium
5EStandard cable
5045E5055E5065E5075E5083E5093E5101E
5MStandard cable
5070M5075M5080M5085M5090M5095M5100M
6DStandard cable
6100D6115D6125D6130D6140D

Tractor not on the list? Send us a photo of the engine serial number and we will confirm the fit.

2011 – 2014 JOHN DEERE TRACTOR?Interim Tier 4 tractors with a DPF use a separate tuneView →

Why delete the EGR on a Tier 3 John Deere?

EGR

Exhaust gas recirculation

The PowerTech Plus engines in the 6030 and 7030 Series were among Deere’s first to use cooled EGR, routing exhaust through a cooler before it re-enters the intake. After 15 years or more, carbon packs the passages, valves stick and coolers crack, which can mean overheating, coolant loss and a large repair bill on a 7230 Premium. Turning EGR off in the ECM and sealing the port with a block-off plate keeps the intake clean and the engine running cooler.

Frequently asked questions

Q1Do I need the Standard or Premium cable?+

Premium tractors use a different CAN high and low pin layout at the diagnostic connector. If your tractor is a Premium model, choose the Premium cable at checkout. Every other model on this page uses the Standard cable.

Q2Why do you need a photo of the engine serial number?+

EGR ports vary between engine builds. The photo tells us which block-off plate to pack so it bolts straight on.

Q3What is the difference between Stage 1 and Stage 2?+

Stage 1 adds about 10% and focuses on fuel economy with a small torque gain. Stage 2 adds about 20% and targets horsepower and overall performance.

Q4How long does the tune take?+

After you send the stock read, your tuned file comes back in about 2 hours. Writing it to the tractor takes only a few minutes.

Q5Disclaimer+

Off-road agricultural use only. Not for tractors registered for road use. Check your provincial or state laws before ordering.

Why Reimer Tuning

Reimer Tuning has been building farm equipment software in Canada since 2014. Each Tier 3 Deere file is written by our own technicians for the tractor it was read from, covered by a 1 year software warranty, and backed by people who answer the phone.

Off-road use only. Not for machines registered for highway use. Buyers are responsible for knowing their provincial or state legislation. All sales final.
