2012-Present Takeuchi TL8/TL8R2 Reflash

From $2,495.00
Reflash Options
Horsepower Tune
Tooling
$2,495.00
$2,495.00
Shipping calculated at checkout.

Want next day delivery? Be quick!

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"


Takeuchi TL8 DPF & EGR Delete

Get your TL8 out of the regen cycle for good. Machines with a Denso ECM are tuned in the cab with our Reflash Master handheld, which shuts off the DPF and EGR and can add up to 20% more power. Machines with a Bosch ECM take a plug-in emulator that removes the DPF. Send us a photo of the ECM label and we will match the right kit. We ship all across the US and Canada.

FitsTakeuchi TL8
EngineKubota 3.3L
Denso ECMDPF + EGR · handheld
Bosch ECMDPF · emulator
RequiresECM label photo
PowerUp to 89 hp (Denso)
Denso ECMHandheld reflashReflash Master · tuned in the cabRemoves: DPF · EGRThe ECM is rewritten through the diagnostic port. Stage 1 and Stage 2 power tunes are available.
Bosch ECMPlug-in emulatorEmulator · no reflashRemoves: DPFThe emulator handles the DPF signals so the ECM stays stock. The EGR remains functional and power stays at 74 hp.

Horsepower tunes · Takeuchi TL8

DENSO ECM ONLY
Stock74HP

Factory baseline
Stage 181HP

+7 hp · +10%
Stage 289HP

+15 hp · +20%

Bosch ECM machines run the emulator, which does not change horsepower.

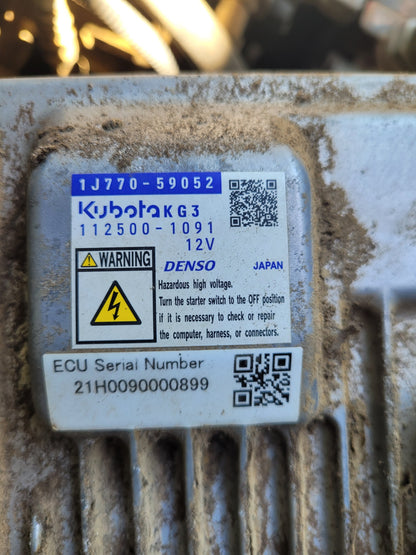

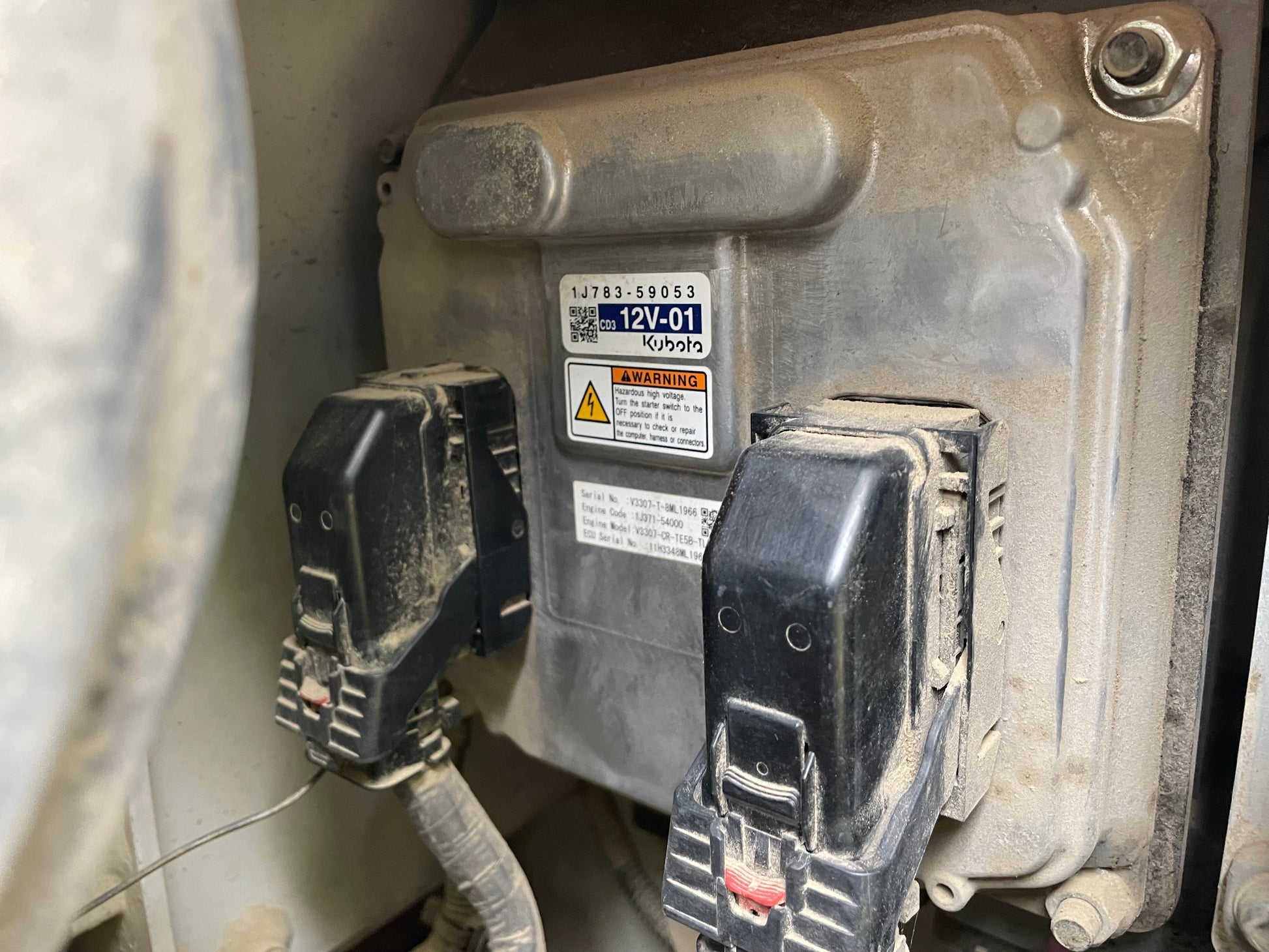

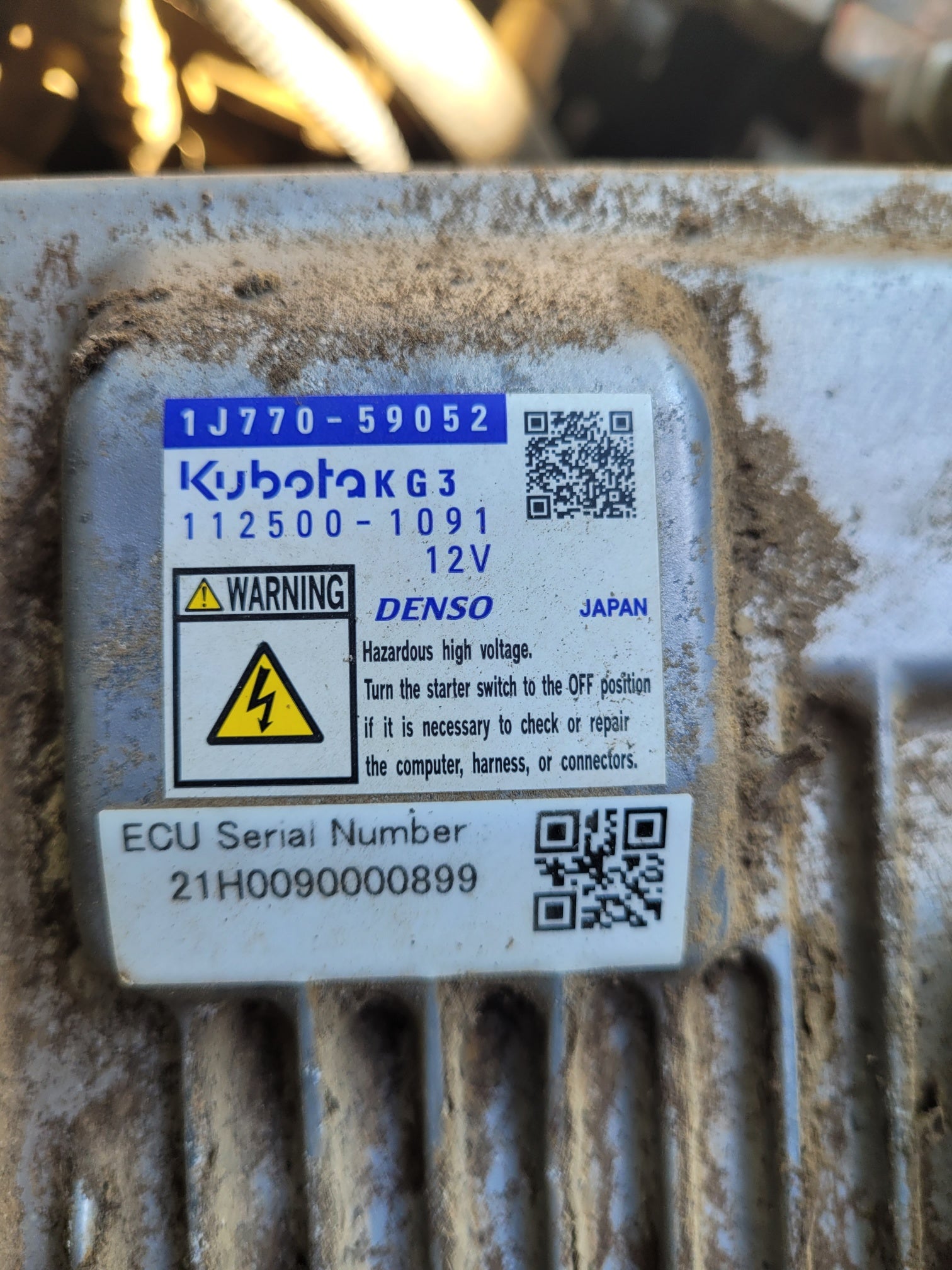

FIRST, FOR EVERY TL8Send us a photo of the ECM labelThe label shows whether your machine has a Denso or Bosch controller, which decides between the handheld and the emulator. Include your serial number.
Email ECM label photo

Kit includes · Denso

01Reflash Master handheld device
02Quick Reference Guide
03DPF removal instructions by email
BOSCH ECMEmulator kitBosch machines receive the plug-in emulator and the same DPF removal instructions by email. No handheld is needed.

Handheld tuning process

STEP 01OrderPick your tune level. The Reflash Master kit ships out, usually in 1 business day.
STEP 02ReadConnect the handheld to the TL8 and save a copy of the factory ECM file.
STEP 03SendUpload that file to us. The tuned version is back in about 2 hours.
STEP 04WriteFlash the tuned file with the handheld, pull the DPF, and run.
VIDEO TUTORIALWatch the handheld tune a Kubota-powered skid steerWatch →

Why delete the DPF and EGR on a Takeuchi TL8?

DPF

Diesel particulate filter

A compact track loader spends much of its day idling between buckets, trenching at part throttle or creeping along a grade. None of that makes enough heat to keep the filter clean, so the TL8 asks for parked regens and the soot load keeps climbing until the machine derates. Removing the DPF gets rid of the regen schedule along with the cost of cleaning or replacing a loaded filter.

EGR

Exhaust gas recirculation

The EGR valve routes some exhaust back through the intake, and on a small 3.3L engine that soot cakes onto the valve and cooler quickly. A sticking valve brings fault codes, poor throttle response and limp mode. On Denso machines our file turns the EGR off electronically, so that failure point is gone. On Bosch machines the emulator leaves the EGR in service.

Frequently asked questions

Q1Which ECM does my TL8 have?+

Takeuchi built the TL8 with either a Denso or a Bosch engine controller, and the label on the ECM tells them apart. Email us a clear photo of that label with your serial number, and we will confirm the right kit before you order.

Q2What changes between the Denso and Bosch versions?+

A Denso ECM is reflashed with our handheld, which removes the DPF and EGR and can add a Stage 1 or Stage 2 power tune. A Bosch ECM takes a plug-in emulator instead. It removes the DPF only, and the EGR keeps working.

Q3Does the Bosch emulator add horsepower?+

No. The emulator handles the DPF signals only, so a Bosch-equipped TL8 keeps its factory 74 hp. Power tunes are available on Denso machines.

Q4How do I take the DPF out?+

Every order includes DPF removal instructions by email. Once the canister is out, the exhaust runs open with no regens to manage.

Q5Can I keep the handheld for another machine?+

Yes. Denso kits include the Reflash Master, which stays with you. Call us and we can unlock it for another machine in your fleet.

Q6Disclaimer+

Sold for off-road machines only, never for anything registered for road use. Confirm your state or provincial rules before buying.

Why Reimer Tuning

We check every TL8 order against its ECM label, so you get the handheld or the emulator your machine actually needs. Our files are written in house, carry a 1 year software warranty, and come from a Canadian team that has been tuning compact equipment since 2014.

Emailing us? Attach a photo of your ECM label.

Off-road use only. Not for machines registered for highway use. Buyers are responsible for knowing their provincial or state legislation. All sales final.
